PVF Module

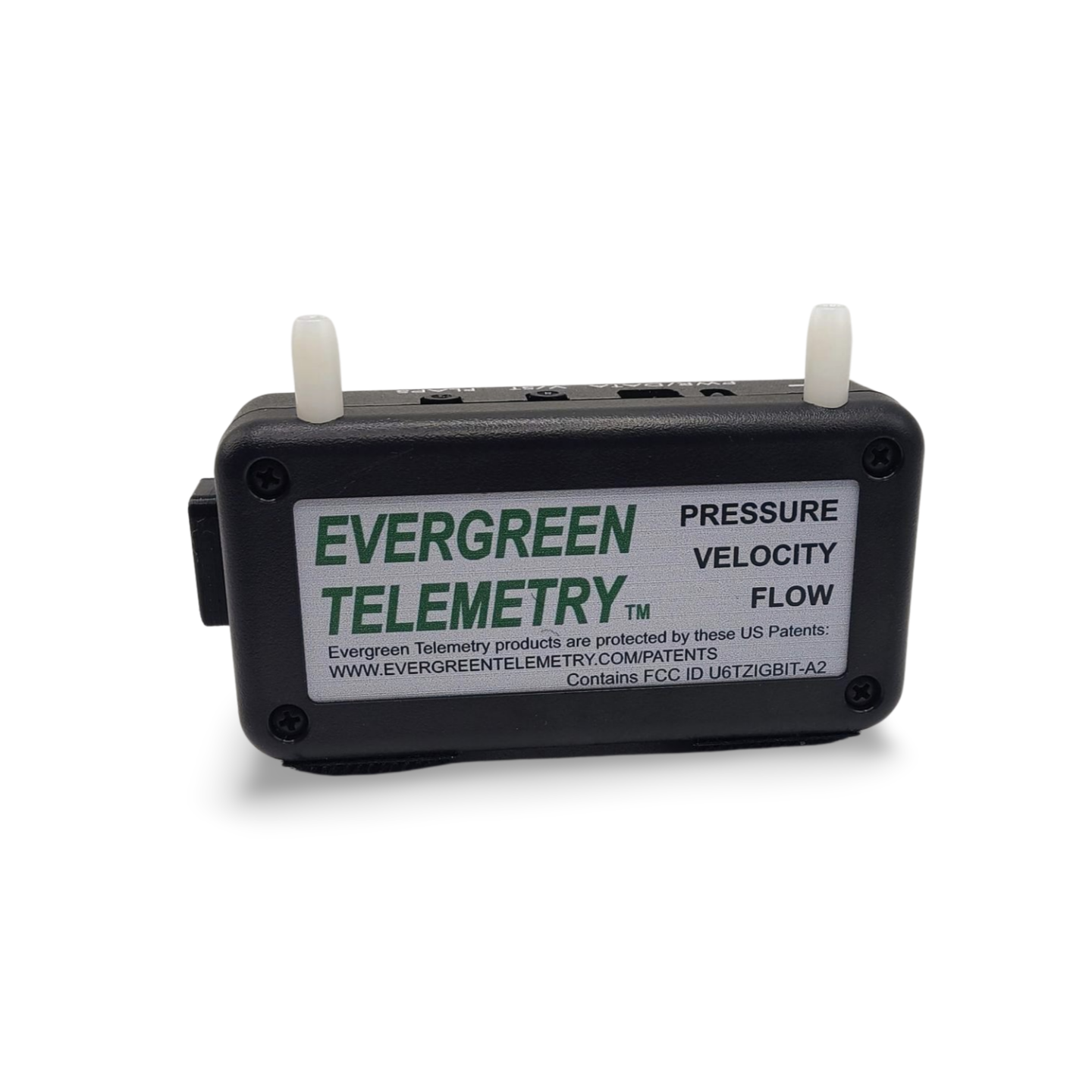

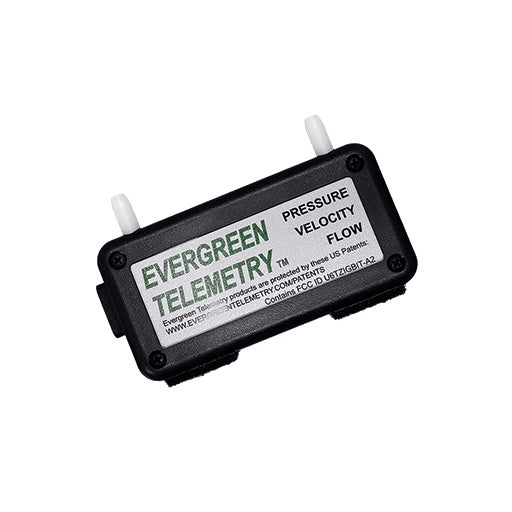

Product Description – PVF Module ( Model: S-PVF-1)

The PVF Module measures pressure, velocity, and airflow. For room-to-room pressure applications, a user can place up to 10 pressure modules in different locations and view real-time measurements while making adjustments. This allows changes in dampers and fan speed to be evaluated in real time. The PVF module is also used for velocity and CFM readings with a capture hood. Every PVF module is calibrated to NIST standards and comes with a calibration certificate.

Applications

• Room-to-room pressure; duct static
• Multiple diffuser air flow relationships
• Velocity and airflow readings

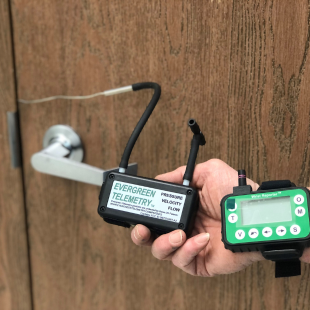

Room To Room Pressures

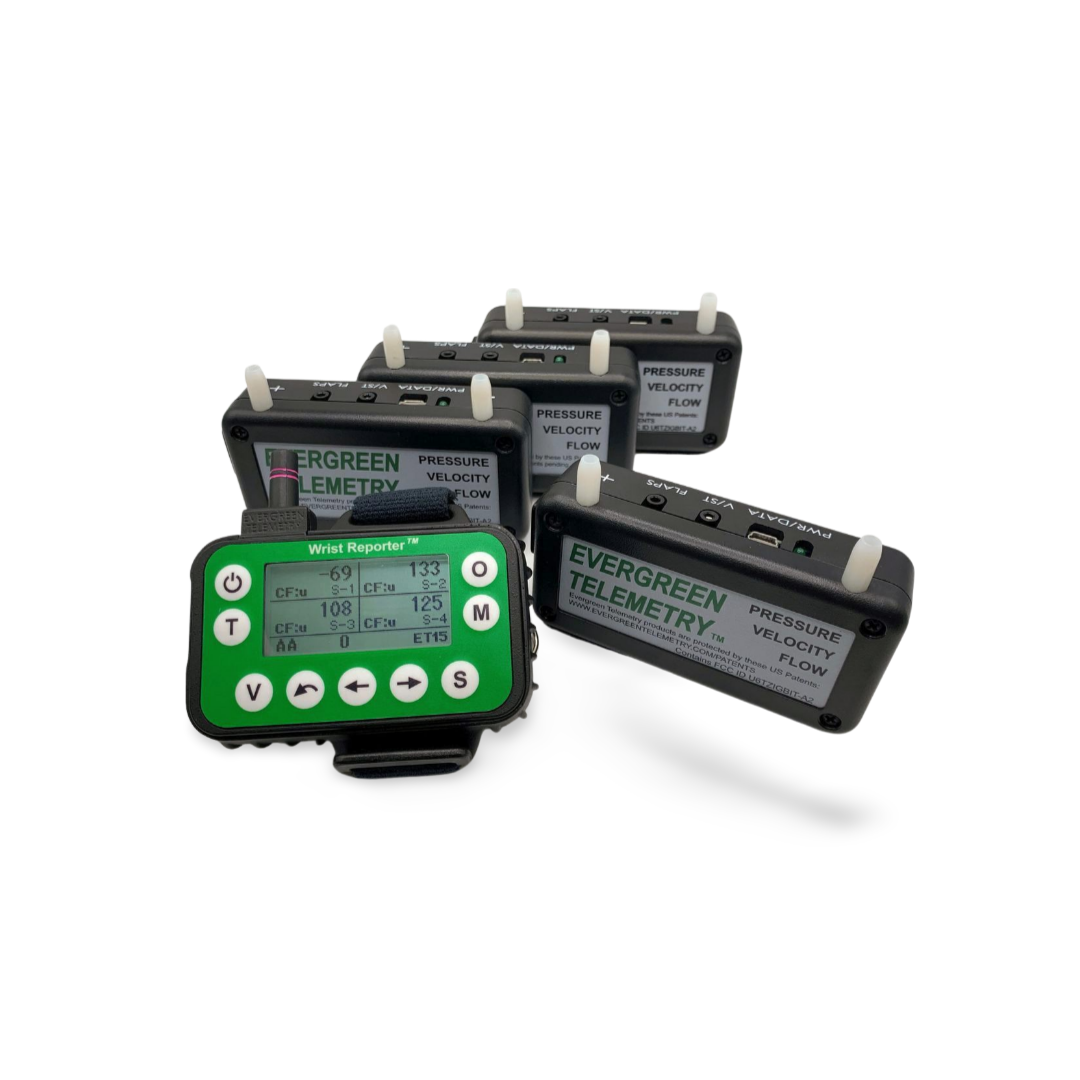

For room-to-room pressure applications, a user can place up to 10 pressure modules and monitor all 10 concurrently while making adjustments.

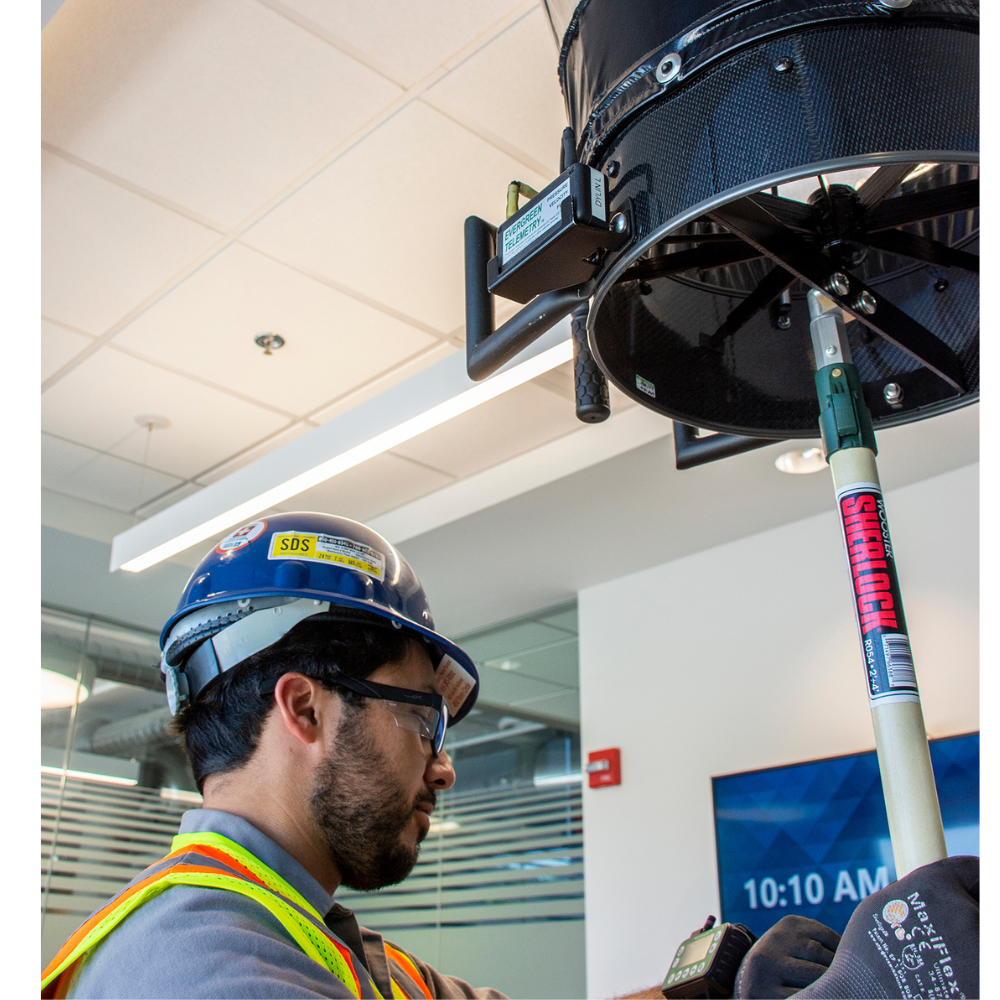

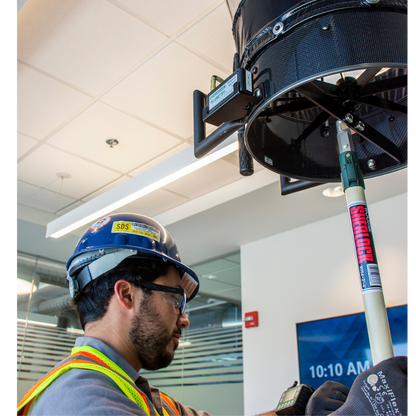

Velocity & Duct Readings

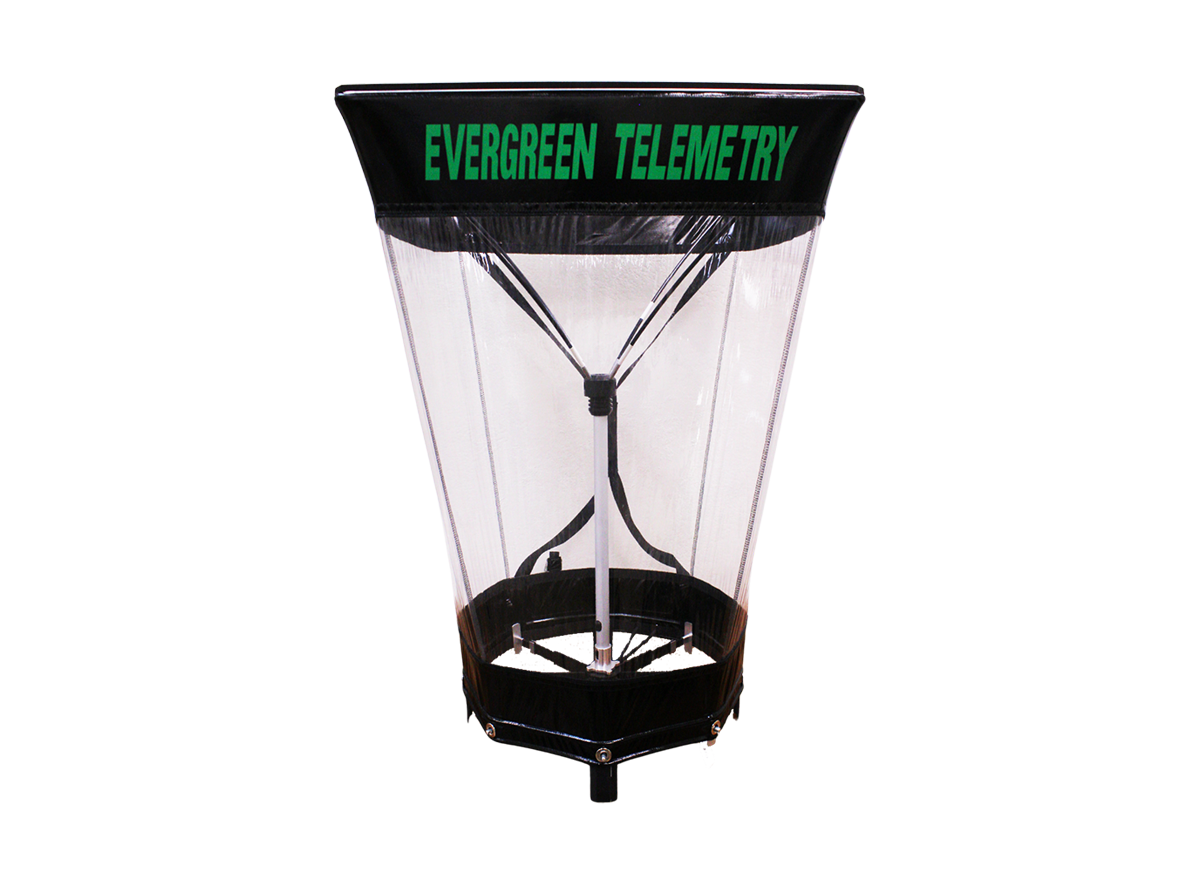

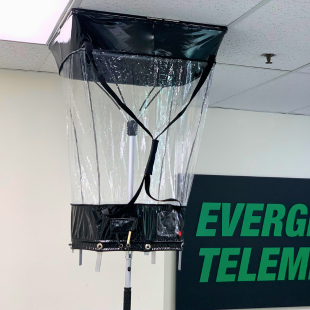

The pressure module can also be used with a capture hood to measure velocity and flow applications. This allows the user to monitor multiple diffuser air flow relationships.

Features & Benefits

• Certified NIST traceable
• Lithium Ion Battery. 30 hours per charge. Recharge in 4 hours
• Connections: 1/4” OD slip-on for 3/16” ID soft tubing
• Operational Temp Limits: 40°F to 140°F
• Datalogging: Time-stamped readings. Up to ten sensors simultaneously. User-selectable reading intervals of 10 mins, 1 min, etc.
• Air Density Correction: Local air density correction range is 14 to 32 in Hg and 32°F to 158°F
• Wireless real-time readings for pressure, velocity, and flow

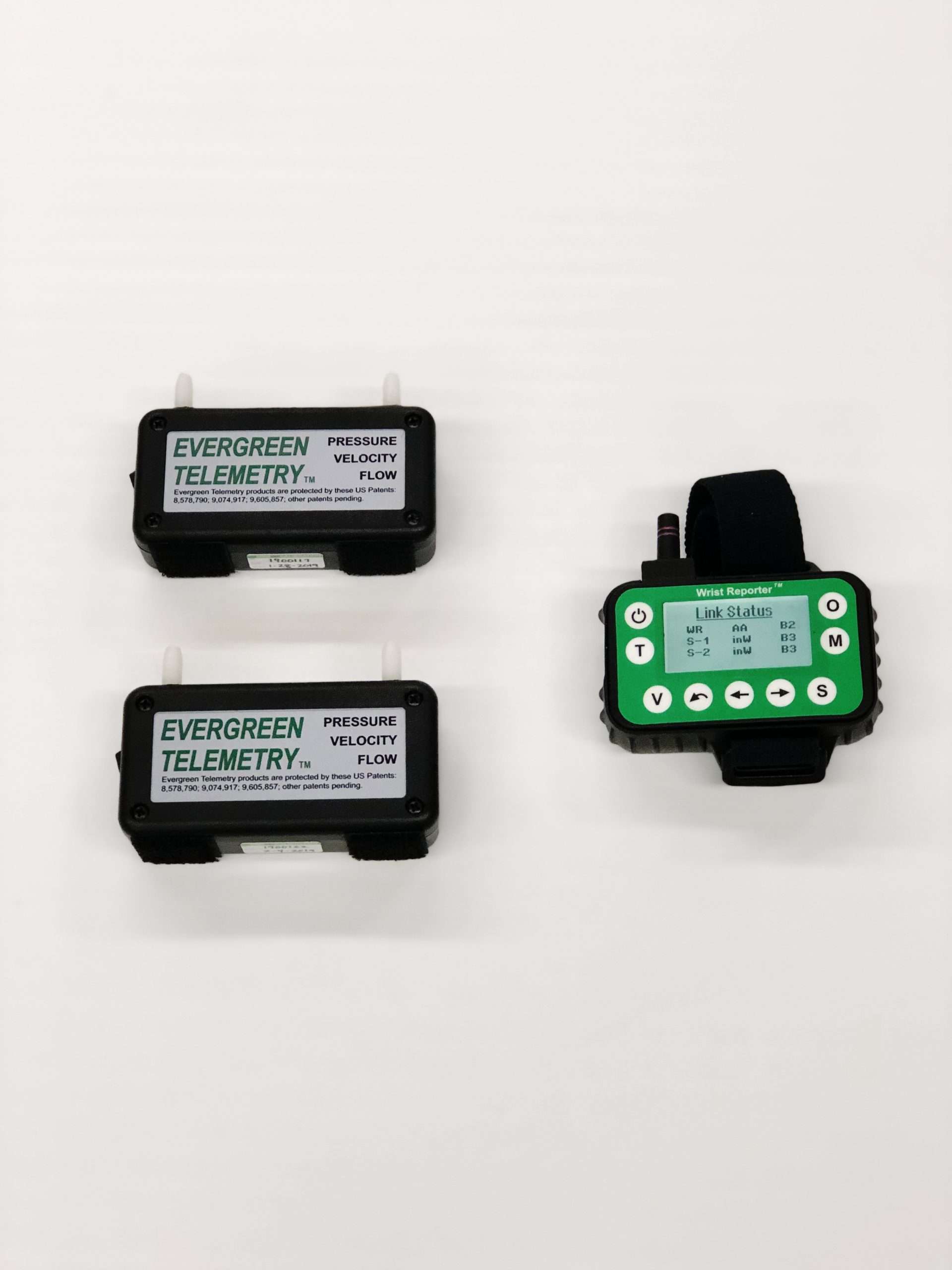

• Supports up to 10 modules for monitoring multiple locations
• Instant evaluation of damper and fan speed adjustments
• NIST-traceable calibration certification with every purchase\
• Compact, lightweight design
• Magnets for hands-free mounting on duct or door joint

Requires

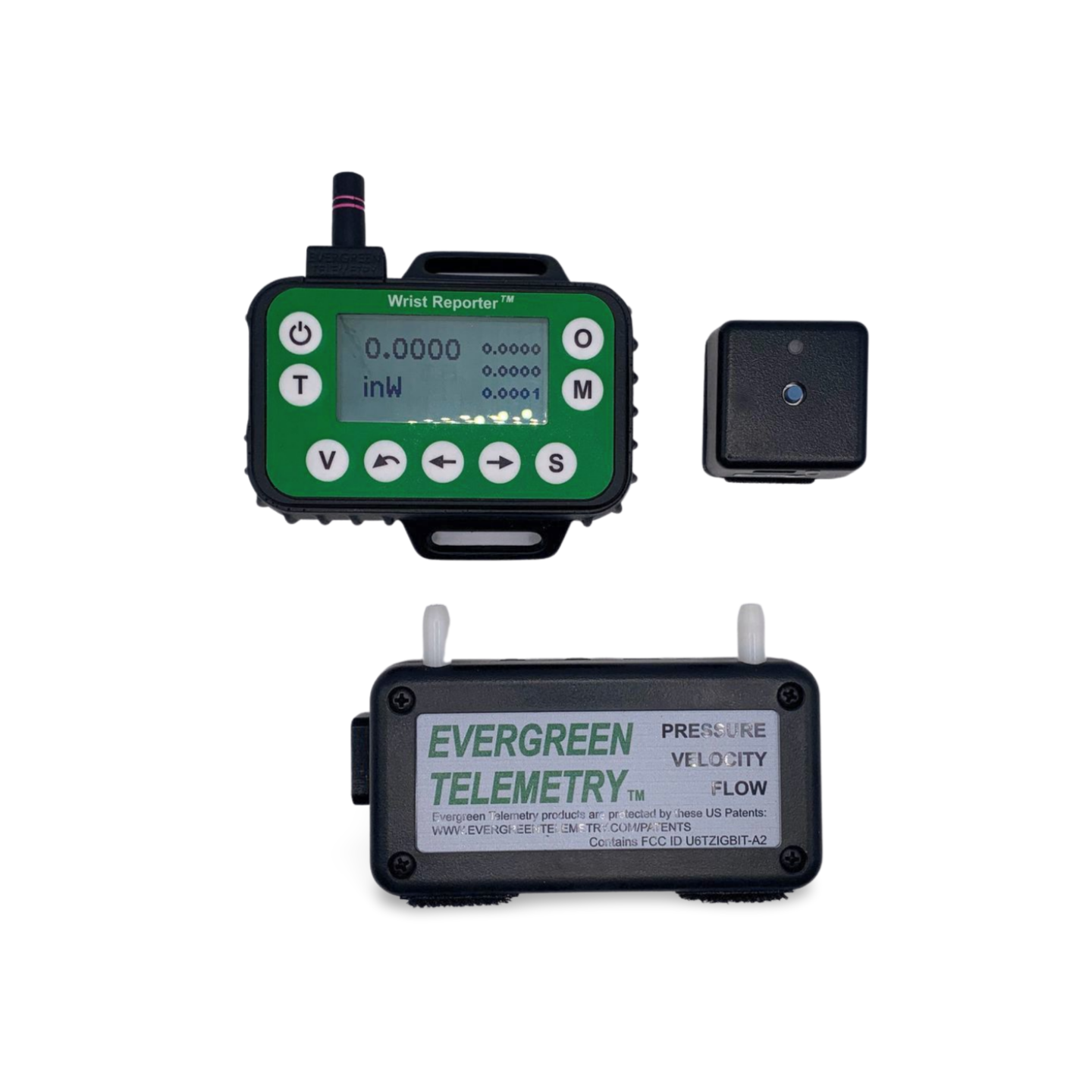

• Wrist Reporter™ required for viewing, storing, and datalogging
